Opencv VS2013安装教程
2022-08-13
之前一直想写一个博客的，但是由于比较懒一直没写，今天由于工作原因，顺便写一个库
首先，库在哪里下，我这边给大家一个2.49版本的，虽然不说完美，但是够用了，毕竟你去下官网的，下载速度说实话甚至不如百度网盘
链接：https://pan.baidu.com/s/1RPR0A9_6jUQU0YV7nzy0jA?pwd=yuer 提取码：yuer

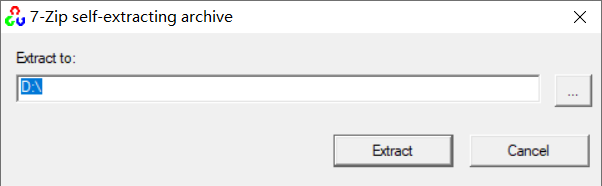

双击下载的文件，建议像我一样安装在D盘根目录，这样等会儿的所有步骤你可以都跟我一样，相对而言比较方便，然后点击Extract
然后就是要确定你的VS2013编译器编译的是32位的软件，还是64位的软件，如何查看呢

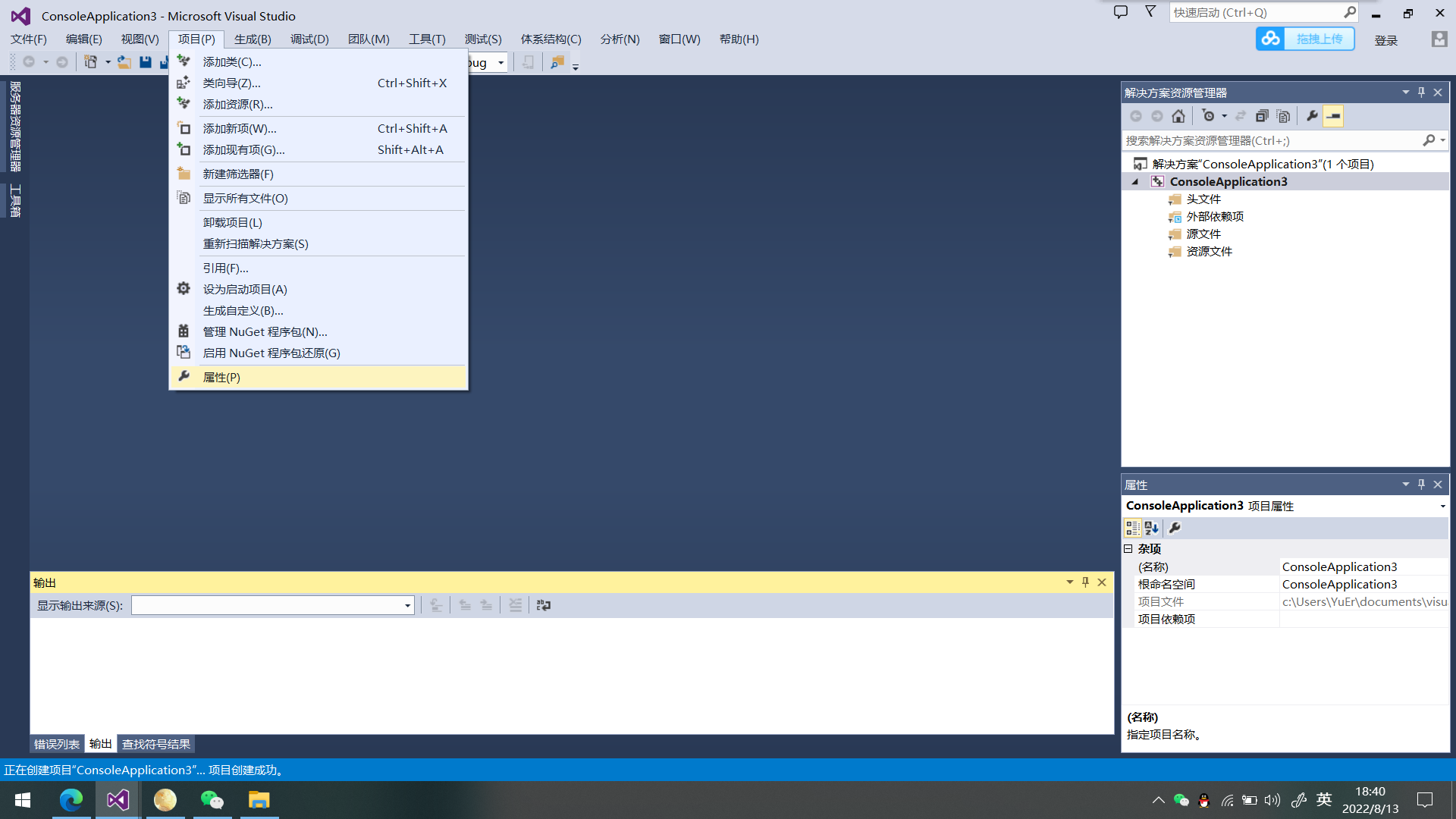

新建一个项目，名字随便取，点击项目，再点击属性

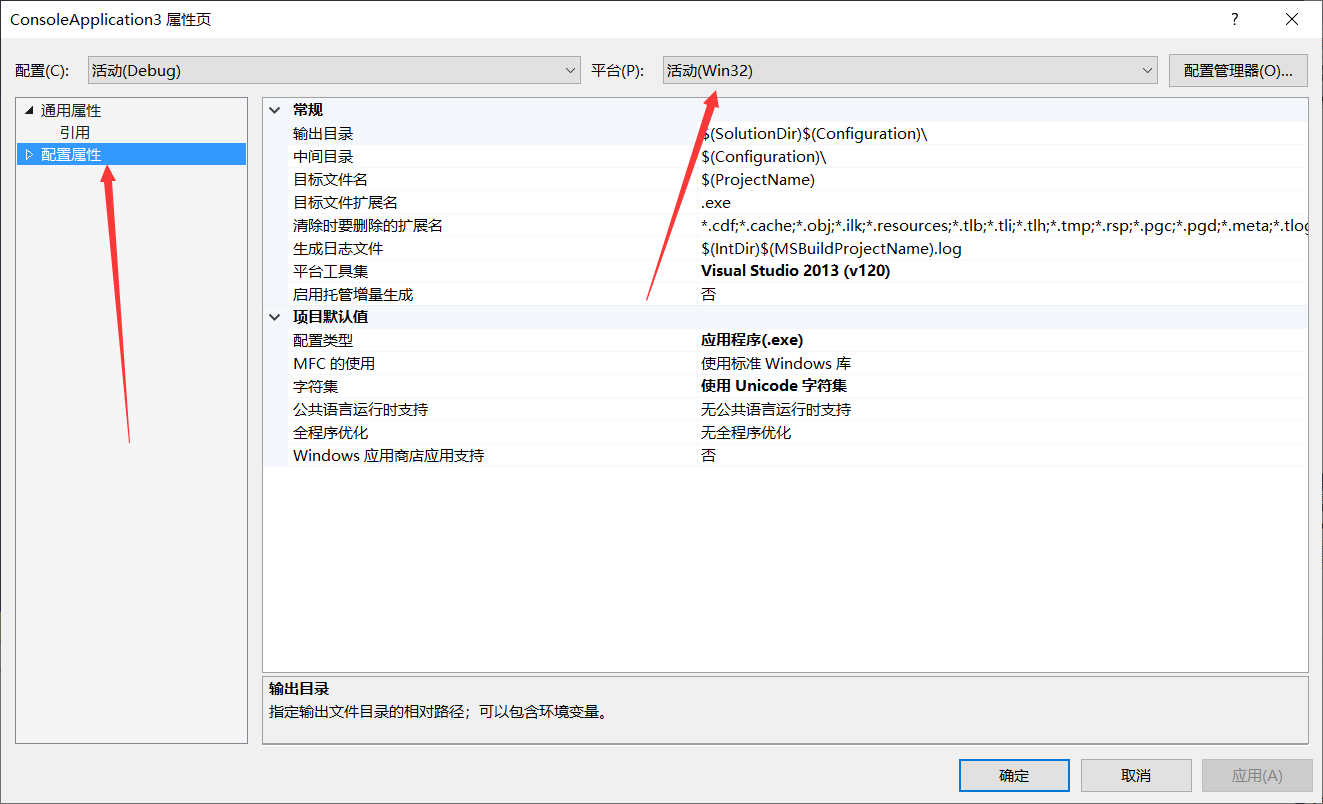

点击配置属性，然后看到箭头所指，我的电脑是Win32的所以我编译的就是32位的
然后添加环境变量
如果你是32位
D:\opencv\build\x86\vc12\bin
如果你是64位
D:\opencv\build\x64\vc12\bin

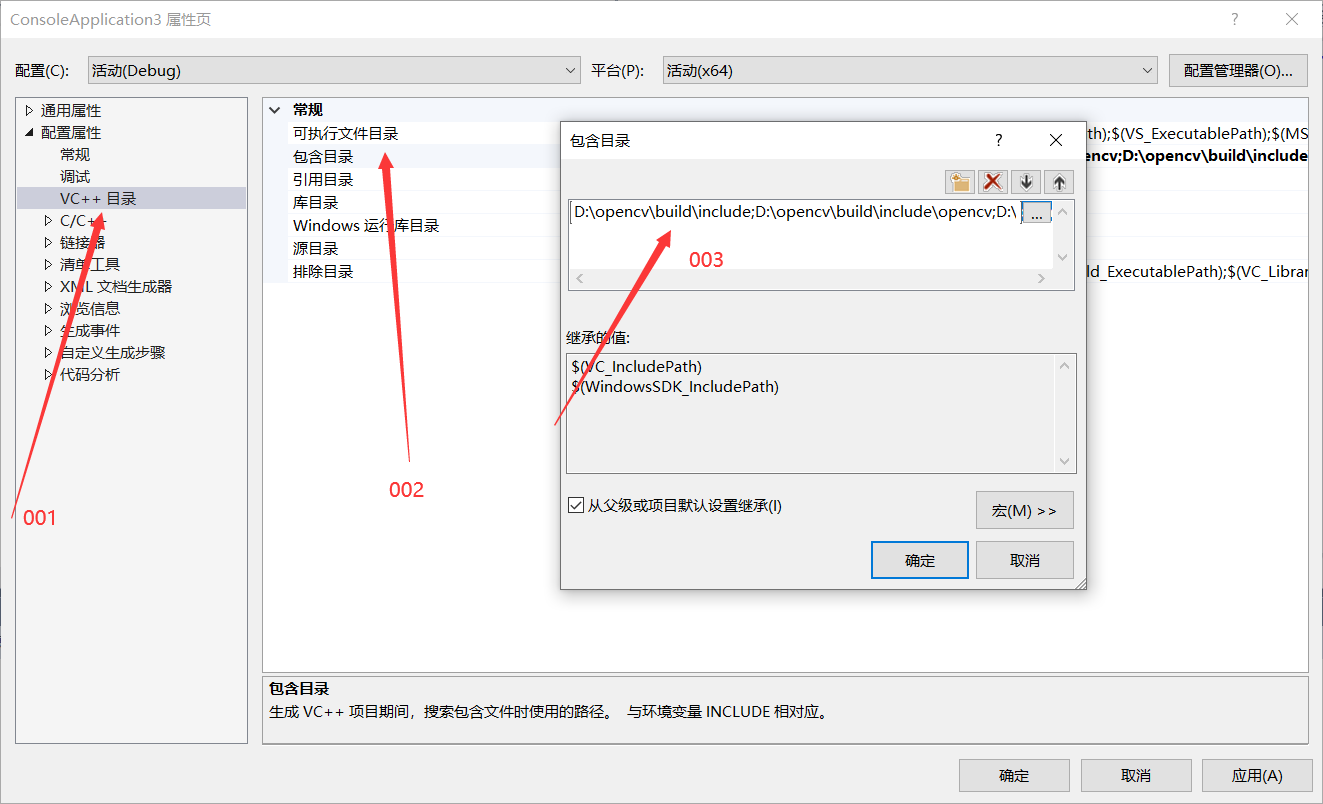

然后回到刚才新建的项目，点击项目——属性——VC++目录——包含目录 ，输入如下文字
D:\opencv\build\include;D:\opencv\build\include\opencv;D:\opencv\build\include\opencv2;

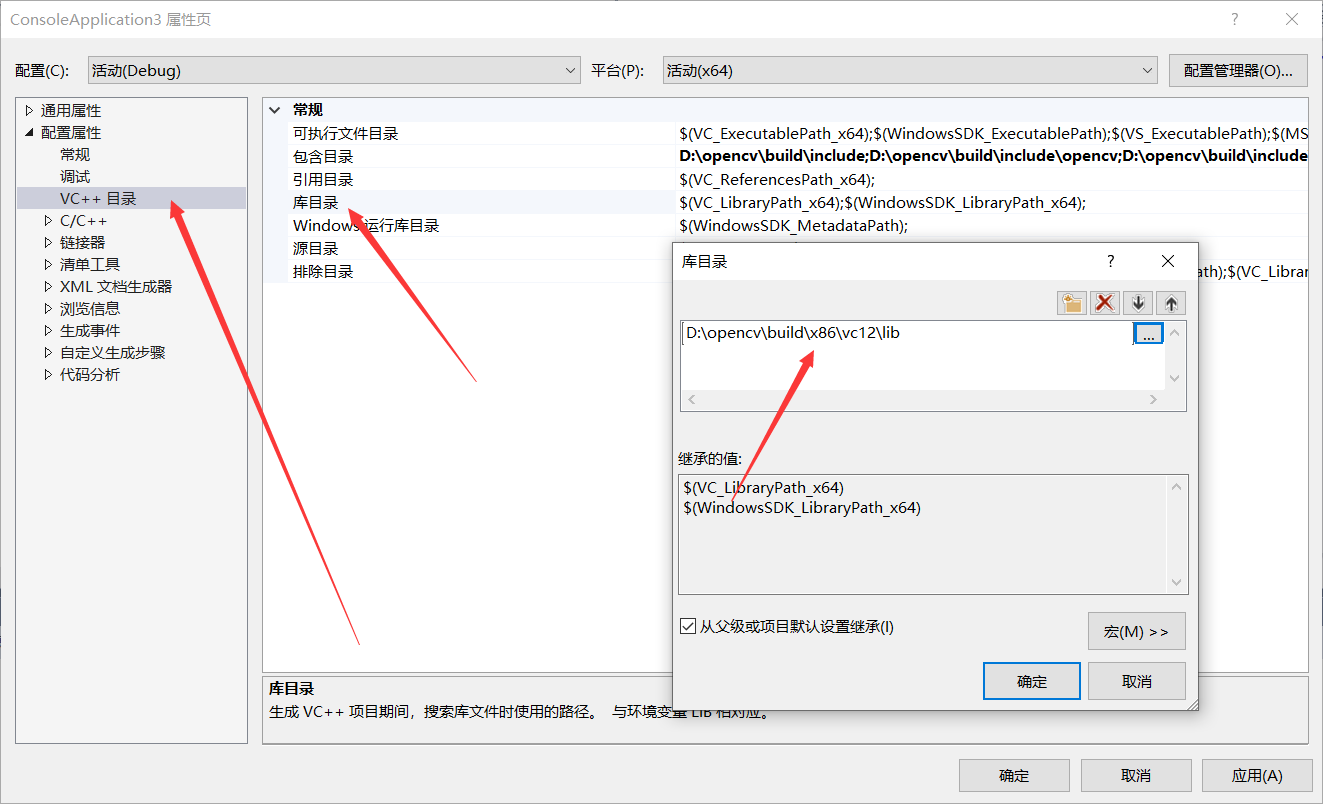

然后同样的地方，点击库目录 ， 输入如下文字
D:\opencv\build\x86\vc12\lib
很明显，如果你是64位的，你应该输入
D:\opencv\build\x64\vc12\lib

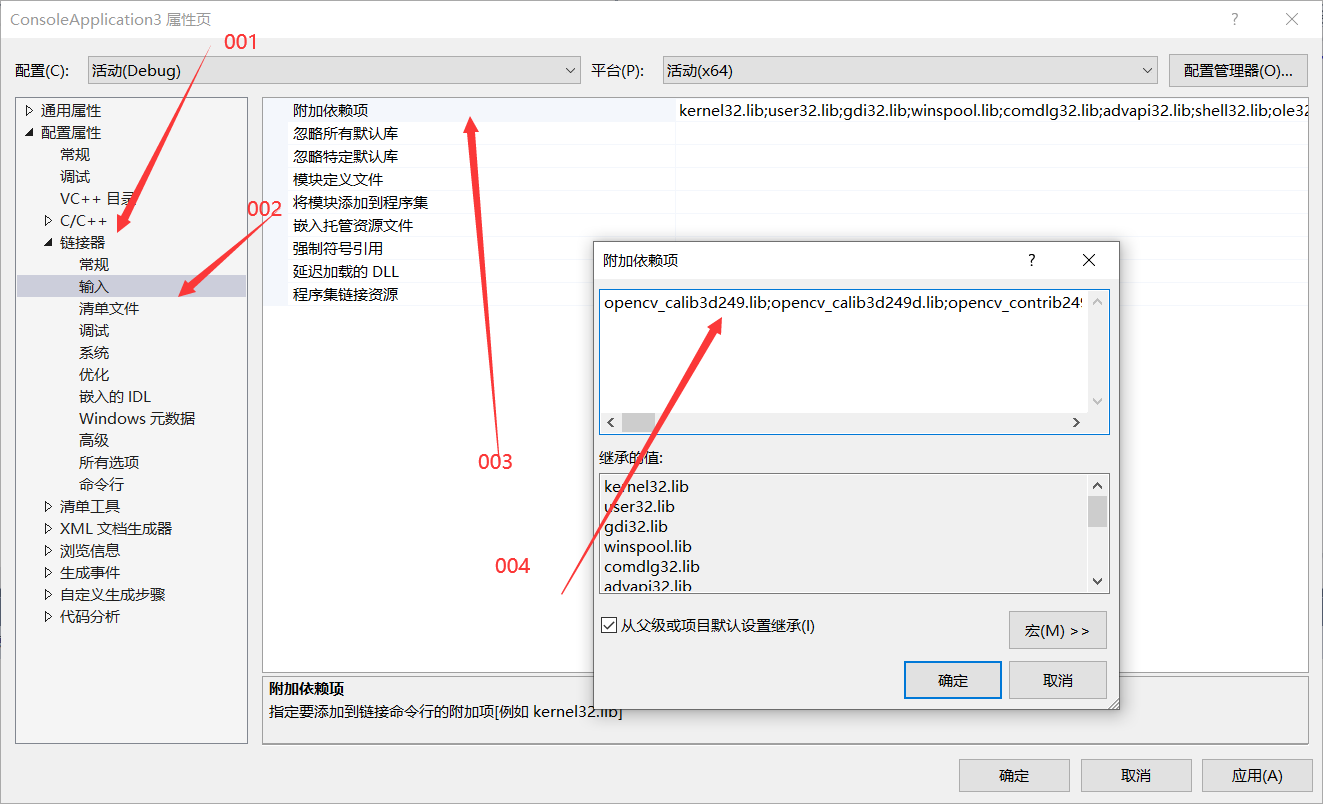

然后点击链接器——输入——附加依赖项，输入如下
opencv_calib3d249.lib;opencv_calib3d249d.lib;opencv_contrib249.lib;opencv_contrib249d.lib;opencv_core249.lib;opencv_core249d.lib;opencv_features2d249.lib;opencv_features2d249d.lib;opencv_flann249.lib;opencv_flann249d.lib;opencv_gpu249.lib;opencv_gpu249d.lib;opencv_highgui249.lib;opencv_highgui249d.lib;opencv_imgproc249.lib;opencv_imgproc249d.lib;opencv_legacy249.lib;opencv_legacy249d.lib;opencv_ml249.lib;opencv_ml249d.lib;opencv_nonfree249.lib;opencv_nonfree249d.lib;opencv_objdetect249.lib;opencv_objdetect249d.lib;opencv_ocl249.lib;opencv_ocl249d.lib;opencv_photo249.lib;opencv_photo249d.lib;opencv_stitching249.lib;opencv_stitching249d.lib;opencv_superres249.lib;opencv_superres249d.lib;opencv_ts249.lib;opencv_ts249d.lib;opencv_video249.lib;opencv_video249d.lib;opencv_videostab249.lib;opencv_videostab249d.lib;
然后点击确定，新建一个cpp文件输入如下代码
#include <opencv2/core/core.hpp>
#include <opencv2/highgui/highgui.hpp>
int main(){
IplImage *image = cvLoadImage("D:\\001.jpg");
cvShowImage("TEST-IMAGE", image);
cvWaitKey(0);

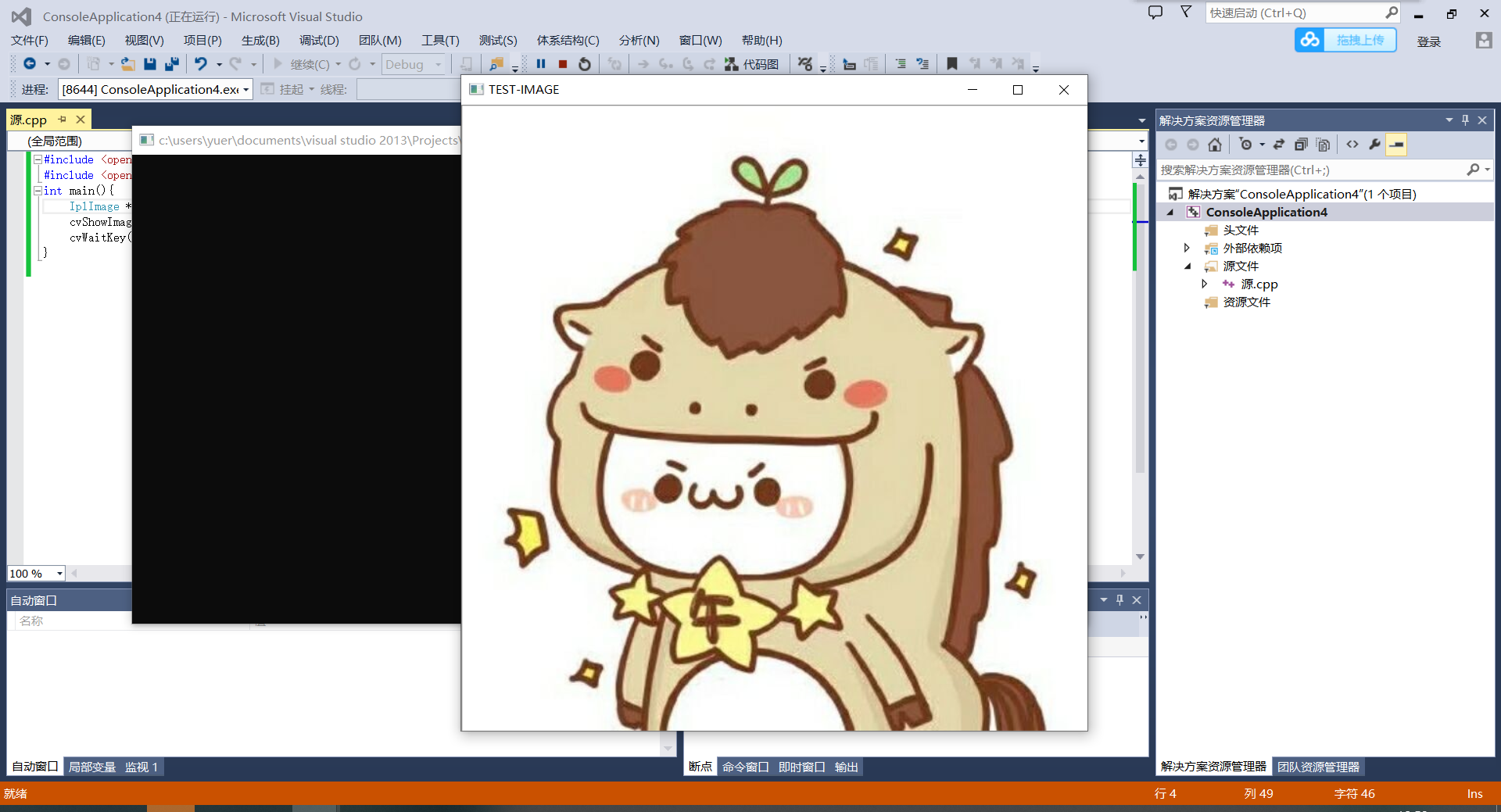

}如果不出意外就已经运行好了
如果你没有成功运行
