Dot拓点 文本设置网页版
2026-01-10

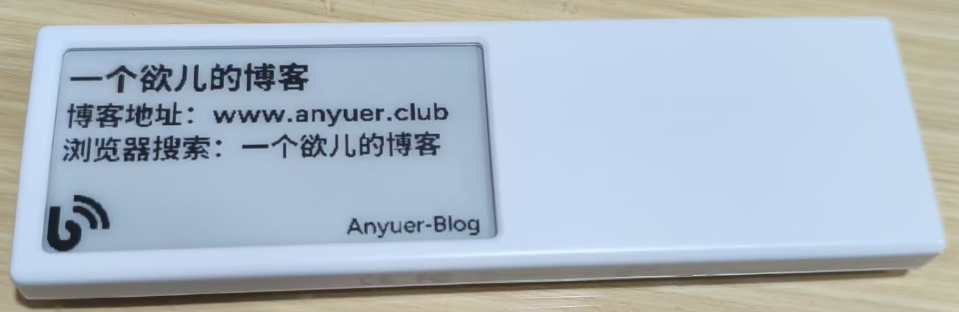

朋友送了一个Dot拓点摆件玩具，官网如下
https://dot.mindreset.tech/app
首先需要获取API-key，参考官方文档
https://dot.mindreset.tech/docs/service/open/get_api
然后再获取设备序列号，同样参考官方文档
https://dot.mindreset.tech/docs/service/open/get_device_id

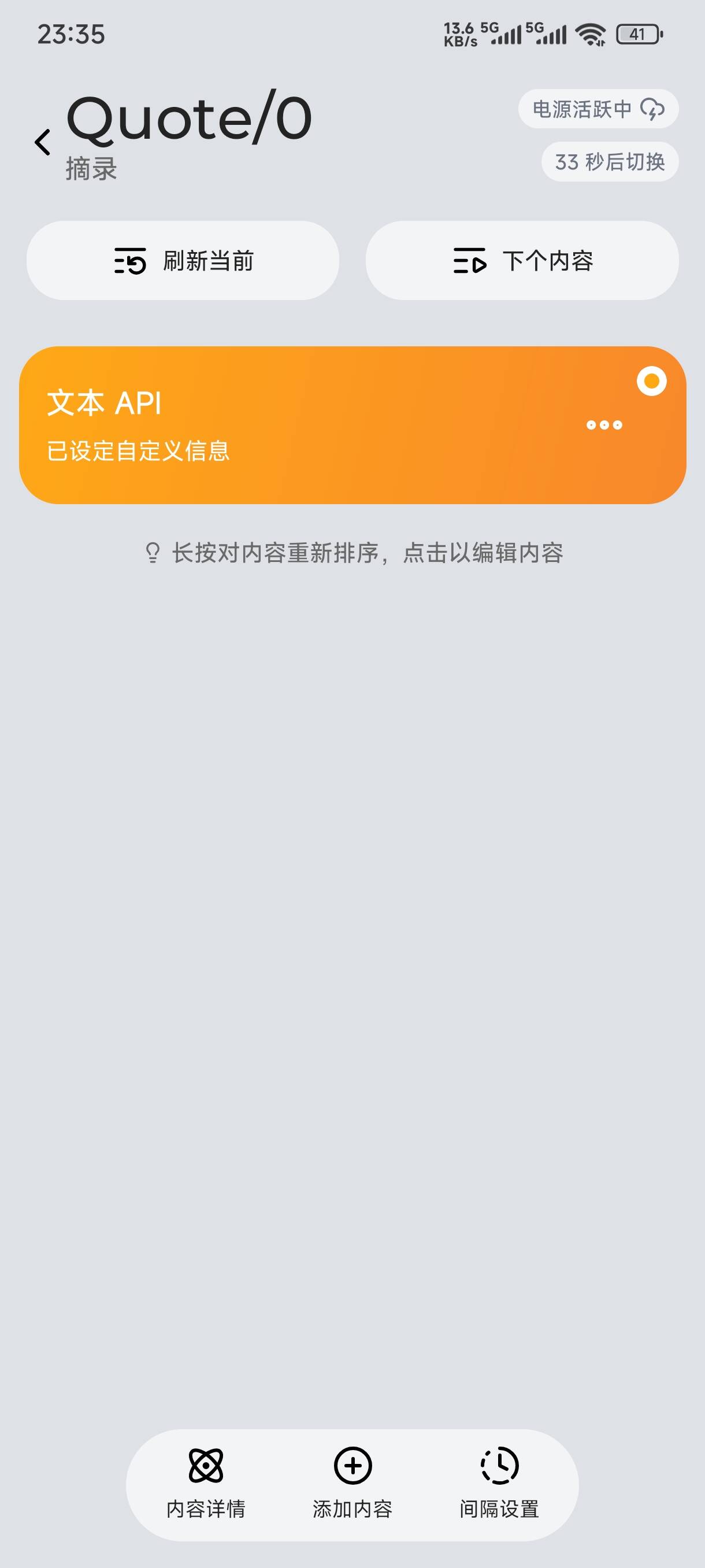

然后就是在手机上添加 文本API 这个内容
然后访问网址，输入信息，点击发送即可生效！
http://www.anyuer.club/dot/text/
当热咯！开源精神！！！
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8" />
<title>Text API Sender</title>
<style>
:root {
--bg: #f4f6fb;
--card: #ffffff;
--primary: #2563eb;
--primary-hover: #1d4ed8;
--success: #16a34a;
--text: #1f2937;
--muted: #6b7280;
--border: #e5e7eb;
--radius: 10px;
}
* {
box-sizing: border-box;
}
body {
margin: 0;
padding: 32px 16px;
background: var(--bg);
font-family: system-ui, -apple-system, BlinkMacSystemFont, "Segoe UI";
color: var(--text);
}
/* 主卡片 */
.box {
max-width: 760px;
margin: auto;
background: var(--card);
padding: 28px 32px;
border-radius: var(--radius);
box-shadow: 0 10px 30px rgba(0,0,0,.08), 0 1px 3px rgba(0,0,0,.05);
}
/* 标题 */
.box h2 {
margin: 0 0 24px;
font-size: 22px;
display: flex;
align-items: center;
gap: 8px;
}
.box h2::before {
content: "📡";
}
/* label */
label {
display: block;
margin-top: 16px;
font-size: 14px;
font-weight: 600;
}
/* 输入框 */
input, textarea, select {
width: 100%;
margin-top: 6px;
padding: 10px 12px;
border-radius: 8px;
border: 1px solid var(--border);
font-size: 14px;
background: #fff;
transition: border-color .2s, box-shadow .2s;
}
textarea {
resize: vertical;
line-height: 1.5;
}
input:focus,
textarea:focus,
select:focus {
outline: none;
border-color: var(--primary);
box-shadow: 0 0 0 3px rgba(37,99,235,.15);
}
/* hint */
.hint {
font-size: 12px;
color: var(--muted);
margin-top: 6px;
}
/* 按钮 */
button {
margin-top: 18px;
padding: 11px 22px;
font-size: 14px;
font-weight: 600;
border-radius: 8px;
border: none;
cursor: pointer;
transition: background .2s, transform .05s, box-shadow .2s;
}
button:active {
transform: translateY(1px);
}
button:disabled {
opacity: .6;
cursor: not-allowed;
}
/* 保存按钮 */
.btn-save {
background: var(--success);
color: #fff;
}
.btn-save:hover {
background: #15803d;
}
/* 发送按钮 */
.btn-send {
width: 100%;
background: var(--primary);
color: #fff;
font-size: 15px;
}
.btn-send:hover {
background: var(--primary-hover);
box-shadow: 0 8px 18px rgba(37,99,235,.25);
}
/* 高级参数 */
details {
margin-top: 24px;
padding: 16px;
border: 1px dashed var(--border);
border-radius: 8px;
background: #fafafa;
}
summary {
cursor: pointer;
font-weight: 600;
color: var(--primary);
}
/* 结果输出 */
pre {
margin-top: 22px;
padding: 14px 16px;
background: #0b1020;
color: #22c55e;
border-radius: 8px;
font-size: 13px;
line-height: 1.5;
max-height: 300px;
overflow: auto;
display: none;
}
/* loading 遮罩 */
.mask {
position: fixed;
inset: 0;
background: rgba(15,23,42,.45);
display: none;
align-items: center;
justify-content: center;
z-index: 999;
backdrop-filter: blur(4px);
}
.dialog {
background: #fff;
padding: 28px 36px;
border-radius: 12px;
box-shadow: 0 20px 40px rgba(0,0,0,.25);
text-align: center;
font-size: 15px;
}
/* loading 圆环 */
.spinner {
width: 40px;
height: 40px;
border: 4px solid #e5e7eb;
border-top-color: var(--primary);
border-radius: 50%;
margin: 0 auto 14px;
animation: spin 1s linear infinite;
}
@keyframes spin {
to {
transform: rotate(360deg);
}
}
</style>
</head>
<body>
<div>
<h2>文本类发送需求</h2>
<label>API_KEY *</label>
<input id="apiKey" placeholder="Bearer Token" />
<label>deviceId *</label>
<input id="deviceId" placeholder="设备 ID" />
<button onclick="saveAuth()">💾 保存 API_KEY & deviceId</button>
<div>凭证仅保存在当前浏览器，本地使用</div>
<label>title（标题）</label>
<input id="title" placeholder="默认：通知" />
<label>message（正文内容）</label>
<textarea id="message" rows="5"></textarea>
<details>
<summary>⚙ 高级参数</summary>
<label>refreshNow</label>
<select id="refreshNow">
<option value="" selected>不指定（由系统决定）</option>
<option value="true">true 立即显示</option>
<option value="false">false 非立即显示</option>
</select>
<label>signature</label>
<input id="signature" placeholder="文本签名（显示在屏幕右下角的签名）" />
<label>link</label>
<input id="link" placeholder="http/https 链接或 Scheme Url（碰一碰跳转的内容）" />
<label>icon（PNG 图标 40×40）</label>
<input type="file" id="iconFile" accept="image/png" />
<div>
图标要求：PNG 格式，建议 40×40 像素，透明背景效果最佳。
<br />
👉 可在
<a href="https://sc.chinaz.com/tubiao/"
target="_blank"
rel="noopener noreferrer"
style="color:#2563eb;font-weight:600;">
站长素材 · 图标库
</a>
下载合适的 PNG 图标
</div>
<img id="iconPreview"
style="margin-top:10px;width:40px;height:40px;display:none;border-radius:6px;border:1px solid #e5e7eb;" />
<!-- 隐藏字段，真正发送用 -->
<textarea id="icon" style="display:none;"></textarea>
<label>taskKey</label>
<input id="taskKey" placeholder="当设备存在多个「文本 API」内容时,用于指定要更新并切换的目标内容 taskKey。可通过「列出设备任务」获取。不传递则默认选择第一个文本 API 内容。" />
</details>
<button id="sendBtn" onclick="send()">🚀 发送</button>
<pre id="result"></pre>
</div>
<!-- loading -->
<div id="mask">
<div>
<div></div>
正在发送，请稍候…
</div>
</div>
<script>
const API_KEY_STORAGE = "TEXT_API_API_KEY"
const DEVICE_ID_STORAGE = "TEXT_API_DEVICE_ID"
window.addEventListener("DOMContentLoaded", () => {
apiKey.value = localStorage.getItem(API_KEY_STORAGE) || ""
deviceId.value = localStorage.getItem(DEVICE_ID_STORAGE) || ""
})
function saveAuth() {
if (!apiKey.value || !deviceId.value) {
alert("API_KEY 和 deviceId 不能为空")
return
}
localStorage.setItem(API_KEY_STORAGE, apiKey.value)
localStorage.setItem(DEVICE_ID_STORAGE, deviceId.value)
alert("✅ 已保存")
}
function buildBody() {
const body = {}
if (title.value.trim()) {
body.title = title.value.trim()
}
if (message.value.trim()) {
body.message = message.value.trim()
}
if (refreshNow.value !== "") {
body.refreshNow = refreshNow.value === "true"
}
if (signature.value.trim()) {
body.signature = signature.value.trim()
}
if (link.value.trim()) {
body.link = link.value.trim()
}
if (icon.value.trim()) {
body.icon = icon.value.trim()
}
if (taskKey.value.trim()) {
body.taskKey = taskKey.value.trim()
}
return body
}
window.addEventListener("DOMContentLoaded", () => {
apiKey.value = localStorage.getItem(API_KEY_STORAGE) || ""
deviceId.value = localStorage.getItem(DEVICE_ID_STORAGE) || ""
const iconFileEl = document.getElementById("iconFile")
iconFileEl.addEventListener("change", () => {
const file = iconFileEl.files[0]
if (!file) return
if (file.type !== "image/png") {
alert("只支持 PNG 格式")
iconFileEl.value = ""
return
}
const reader = new FileReader()
reader.onload = e => {
const dataUrl = e.target.result
icon.value = dataUrl
iconPreview.src = dataUrl
iconPreview.style.display = "block"
}
reader.readAsDataURL(file)
})
}
)
async function send() {
if (!apiKey.value || !deviceId.value) {
alert("API_KEY 和 deviceId 必填")
return
}
localStorage.setItem(API_KEY_STORAGE, apiKey.value)
localStorage.setItem(DEVICE_ID_STORAGE, deviceId.value)
result.style.display = "none"
sendBtn.disabled = true
mask.style.display = "flex"
try {
const res = await fetch(
`https://dot.mindreset.tech/api/authV2/open/device/${deviceId.value}/text`,
{
method: "POST",
headers: {
Authorization: "Bearer " + apiKey.value,
"Content-Type": "application/json"
},
body: JSON.stringify(buildBody())
}
)
result.textContent = await res.text()
} catch (e) {
result.textContent = e.toString()
} finally {
mask.style.display = "none"
sendBtn.disabled = false
result.style.display = "block"
result.scrollIntoView({ behavior: "smooth" })
}
}
</script>
</body>
</html>
